数显重型卧式车床 / Heavy duty horizontal lathe

品牌 Brand:北方星火机床

系列 Series: Large Floor Type Lathe

型号 Type:CW6020

X轴行程 Xstroke:1000mm

Z轴行程 Zstroke: 350mm

X轴快速 Xrapid speed:3000mm/min

Z轴快速 Zrapid speed: 2000mm/min

床身回转 Swing over machine bed:2000mm

滑板回转 Swing over cutting tool carriage:

工件重量 Weight of workpiece:

工件长度 Length of workpiece:

尾座直径 Diameter of tailstock:1600mm

尾座行程 Stroke of tailstock:

产品概述 / Product summary

标准落地车床主要可承担各种车削工作,能够车削各种零件的端面、外圆、锥面等工艺。机床主轴采用三支承结构,具有很好的刚度;机床采用下排屑方式,排屑方便。机床还具有单独油泵,强制润滑,以及快速移动、终端保险等功能。转速、进给量和功率特性等设计合理,均能很好地满足粗精加工需要。机床具有刚性强、效率高、节能、安全可靠、操作方便和造型美观等特点。

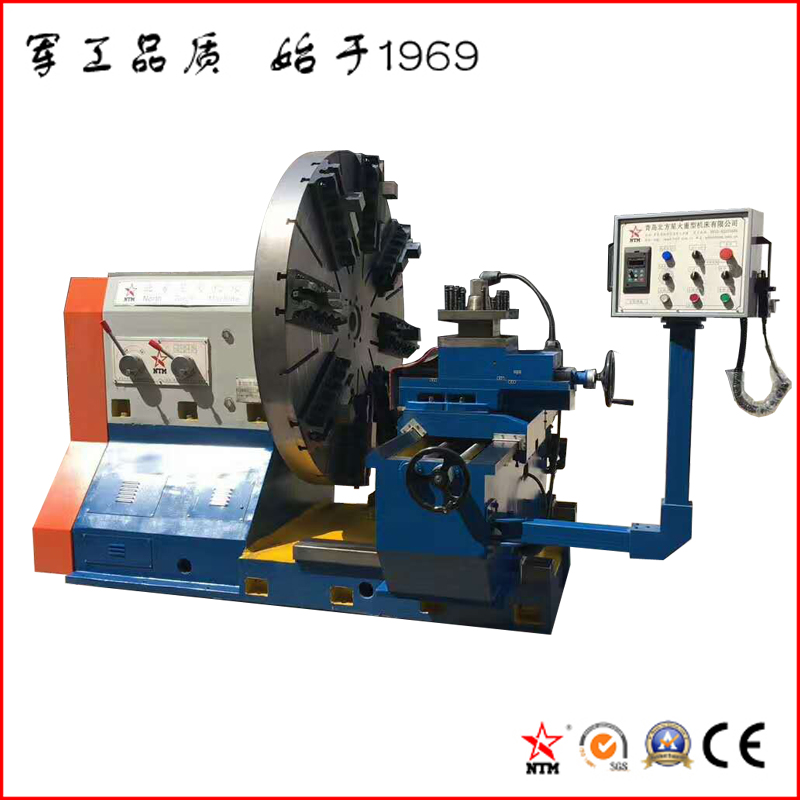

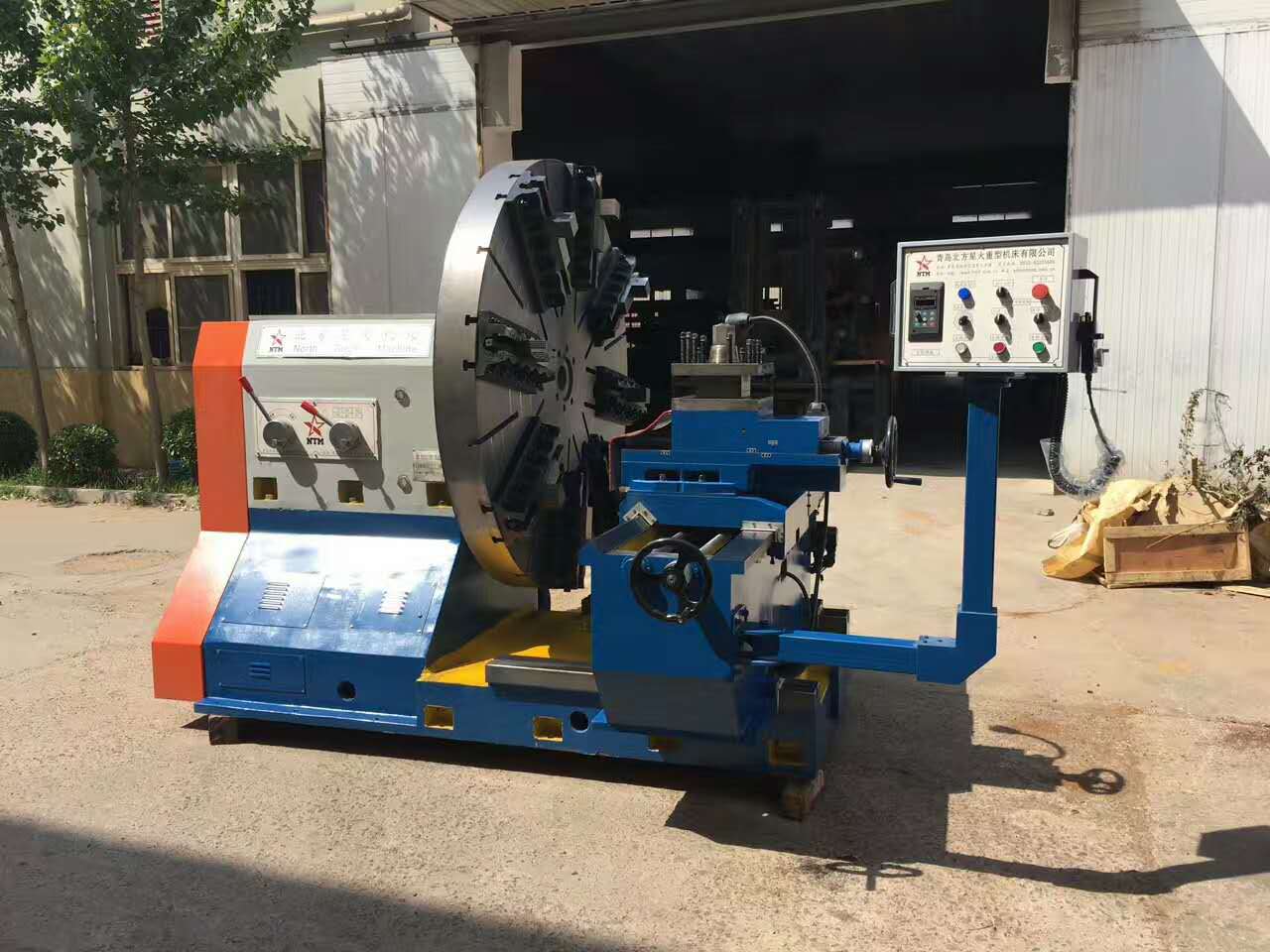

产品实拍 / Equipment display

客户使用现场 / Case study

外型尺寸 / Equipment size
